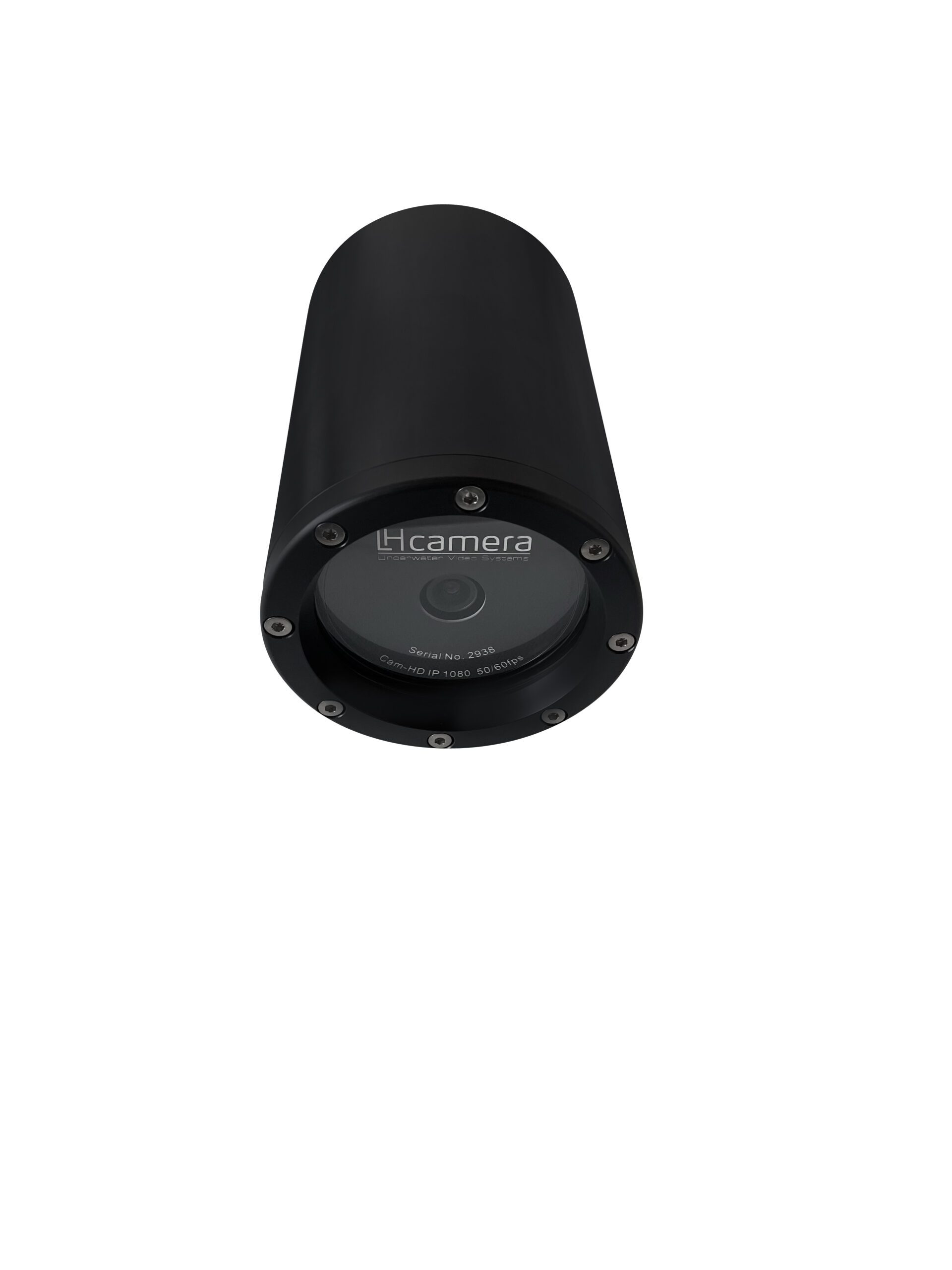

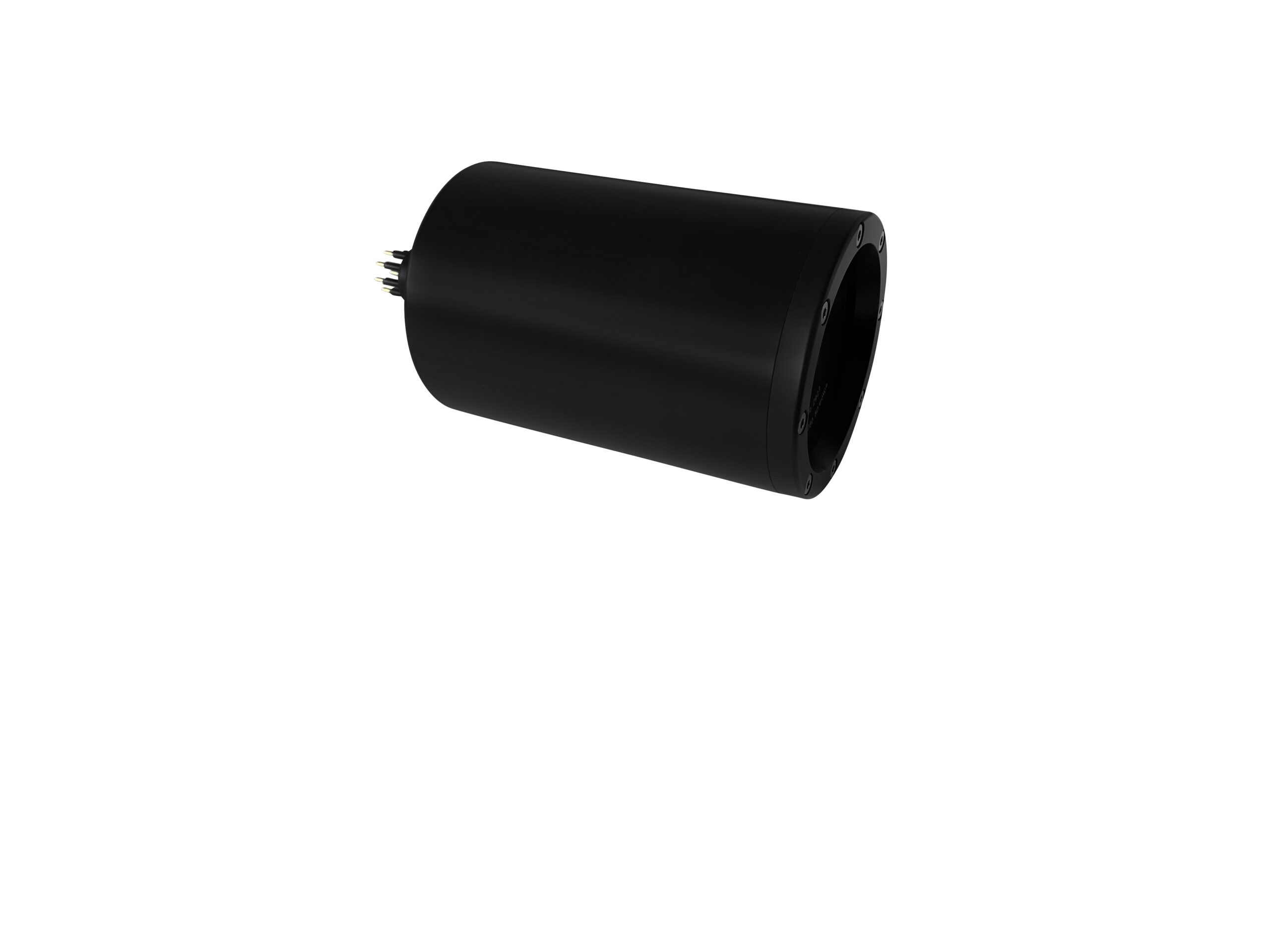

Subsea IP Underwater videocamera W/fixed focus
High Definition Low Light Ethernet Subsea Camera with a fixed focus lens is a specialized piece of equipment used for capturing HD-underwater video footage. The camera is connected to a surface-based control unit via a cable, and the video footage is transmitted in real-time over Ethernet to a computer or other display device. This type of camera is often used for scientific research, military operations, and underwater construction and repair, among other applications. The use of Ethernet technology ensures reliable, high-speed transmission of video data, while the fixed focus lens allows for clear and sharp images of the underwater environment.
IP underwater camcorder. Used i.a. to:
- Aquaculture industry
- Land-based fish farms
- Offshore underwater inspection
- The wind power industry
- Dredging vessel
TECHNICAL SPECIFICATIONS:
- Camera housing in POM. Window acrylic. Depth rating 50 meters.
- Length 153 ~ 199 mm. Diameter 100 mm. Weight approx 925g.
- Length 153 ~ 199 mm. Diameter 100 mm. Weight approx 925g.
- Lens 2.8mm Fixed Focus length, field of view H 102°V 71°.
- Max Resolution (2592×1944 20 fps)-(1920×1080 50/60 fps). Low Latency Approx. 120 ms.
- Video Compression H.264-H265+
- Standard Streaming protocol RTSP-RTP-UDP
- Interoperability ONVIF-CGI.-Milsetone
- Web Viewer IE, Chrome, Firefox, Safari.
- Ethernet (10/100Base-T).
- Mounted with Subsea DBH13M/MCBH8M connector for Power Supply 12VDC/PoE+(802.3at) or Subsea DBH8M PoE
+(802.3at) supply. Power Consumption approx 7W. Other connector on request.
